Diffraction project datasets FM11914B_3bb5

  • Method: MAD
  • Resolution: 2.3 Å
  • Space group: C 1 2 1
Download all images (3.2 GB)

PDB website for 3BB5
PDB validation report for 3BB5

doi:10.18430/M33BB5

Project details

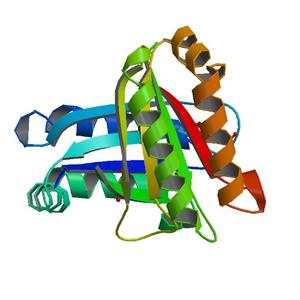

Title CRYSTAL STRUCTURE OF A DIMERIC FERREDOXIN-LIKE PROTEIN OF UNKNOWN FUNCTION (JANN_3925) FROM JANNASCHIA SP. CCS1 AT 2.30 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 147.72 x 66.32 x 110.45
Unit cell angles [°] 90.0, 93.4, 90.0

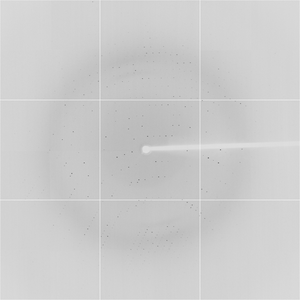

Dataset 61535_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 215.0
Wavelength [Å] 0.97970
Experiment Date 2007-10-05
Equipment 8.2.2 at ALS (Advanced Light Source)

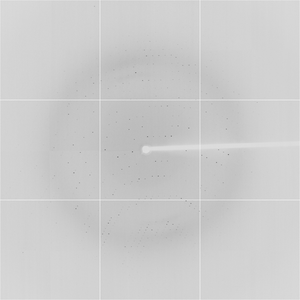

Dataset 61535_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 215.0
Wavelength [Å] 0.95370
Experiment Date 2007-10-05
Equipment 8.2.2 at ALS (Advanced Light Source)

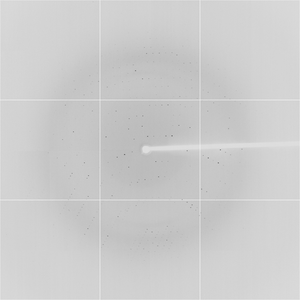

Dataset 61535_2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 215.0
Wavelength [Å] 0.97950
Experiment Date 2007-10-05
Equipment 8.2.2 at ALS (Advanced Light Source)
