Diffraction project datasets FM11977A_3bde
Project details
| Title |

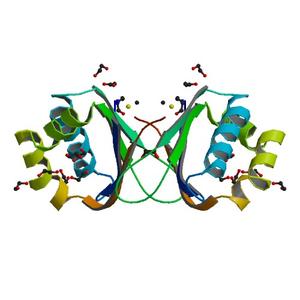

Crystal structure of a dabb family protein with a ferredoxin-like fold (mll5499) from mesorhizobium loti maff303099 at 1.79 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.22 |
| Unit cell edges [Å] |
118.67 x
28.42 x
76.99
|
| Unit cell angles [°] |
90.0,
117.8,
90.0
|

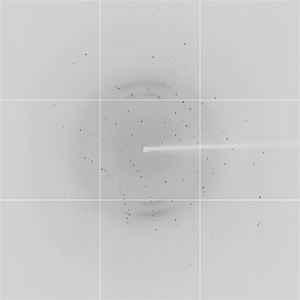

Dataset 62235_1_E1_###.img details
| Number of frames |
125 (1 - 125) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
10.0 |
| Wavelength [Å] |
0.97970 |
| Experiment Date |
2007-10-04 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|
Dataset 62235_1_E2_###.img details
| Number of frames |
125 (1 - 125) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
10.0 |
| Wavelength [Å] |
0.95370 |
| Experiment Date |
2007-10-04 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

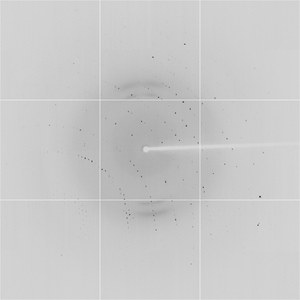

Dataset 62235_2_###.img details
| Number of frames |
125 (1 - 125) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
10.0 |
| Wavelength [Å] |
0.97960 |
| Experiment Date |
2007-10-04 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|
