Diffraction project datasets FM11991A_3bgu
Project details
| Title |

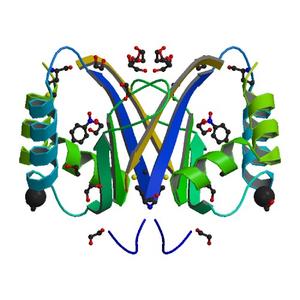

Crystal structure of a dimeric ferredoxin-like protein of unknown function (tfu_0763) from thermobifida fusca yx at 1.50 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.20 / 0.24 |
| Unit cell edges [Å] |
44.07 x
35.27 x
76.63
|
| Unit cell angles [°] |
90.0,
104.1,
90.0
|

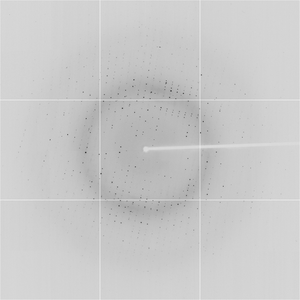

Dataset 61817_1_E1_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
187.0 |
| Wavelength [Å] |
0.97980 |
| Experiment Date |
2007-10-04 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

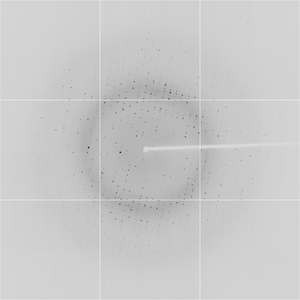

Dataset 61817_1_E2_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
187.0 |
| Wavelength [Å] |
0.95370 |
| Experiment Date |
2007-10-04 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

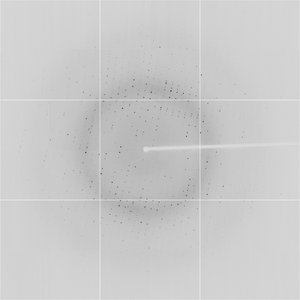

Dataset 61817_2_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
187.0 |
| Wavelength [Å] |
0.97970 |
| Experiment Date |
2007-10-04 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|
