Diffraction project datasets FN12456A_3in6

  • Method: MAD
  • Resolution: 2.12 Å
  • Space group: P 42 21 2
Download all images (3.3 GB)

PDB website for 3IN6
PDB validation report for 3IN6

doi:10.18430/M33IN6

Project details

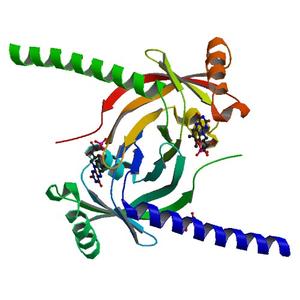

Title Crystal structure of a fmn-binding protein (swol_0183) from syntrophomonas wolfei subsp. wolfei at 2.12 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.22 / 0.25
Unit cell edges [Å] 103.11 x 103.11 x 59.79
Unit cell angles [°] 90.0, 90.0, 90.0

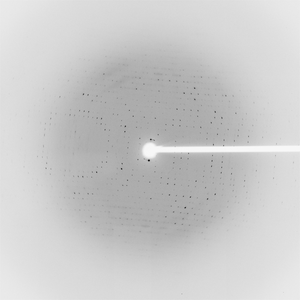

Dataset 112260_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 186.0
Wavelength [Å] 0.97936
Experiment Date 2009-03-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

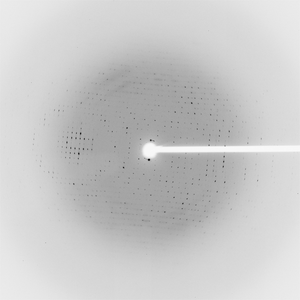

Dataset 112260_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 186.0
Wavelength [Å] 0.91162
Experiment Date 2009-03-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

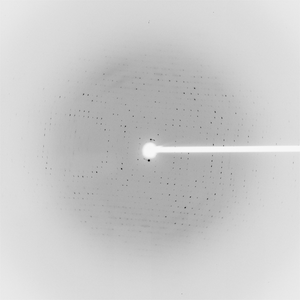

Dataset 112260_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 186.0
Wavelength [Å] 0.97922
Experiment Date 2009-03-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
