Diffraction project datasets FN9870A_3bdv

  • Method: MAD
  • Resolution: 1.66 Å
  • Space group: P 21 21 21
Download all images (3.4 GB)

PDB website for 3BDV
PDB validation report for 3BDV

doi:10.18430/M33BDV

Project details

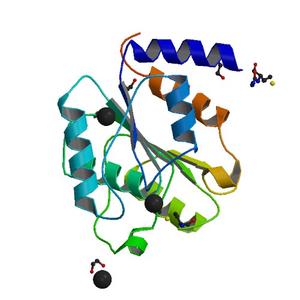

Title Crystal structure of a putative yden-like hydrolase (eca3091) from pectobacterium atrosepticum scri1043 at 1.66 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 35.65 x 93.30 x 104.10
Unit cell angles [°] 90.0, 90.0, 90.0

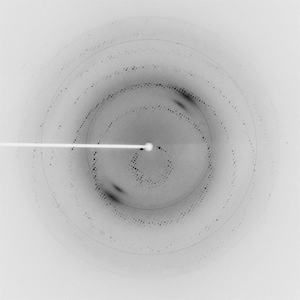

Dataset 65108_1_E1.#### details

Number of frames 90 (1 - 90)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 154.0
Wavelength [Å] 0.97953
Experiment Date 2007-10-26
Equipment 23-ID-D at APS (Advanced Photon Source)

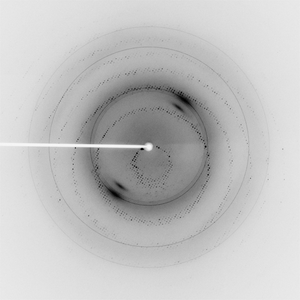

Dataset 65108_1_E2.#### details

Number of frames 90 (1 - 90)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 154.0
Wavelength [Å] 0.91840
Experiment Date 2007-10-26
Equipment 23-ID-D at APS (Advanced Photon Source)

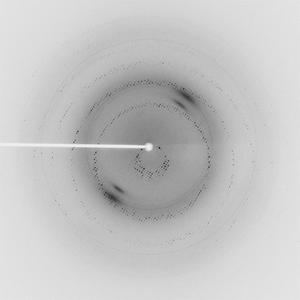

Dataset 65108_2.#### details

Number of frames 90 (1 - 90)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 154.9
Wavelength [Å] 0.97939
Experiment Date 2007-10-26
Equipment 23-ID-D at APS (Advanced Photon Source)
