Diffraction project datasets FP13075B_3clo
- Method: MAD
- Resolution: 2.04 Å
- Space group: H 3 2
PDB website for 3CLO
PDB validation report for 3CLO
doi:10.18430/M33CLO
Project details

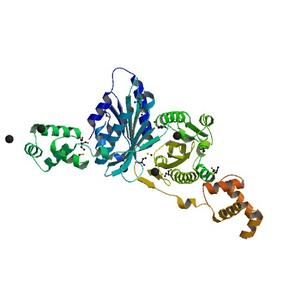

| Title | Crystal structure of putative transcriptional regulator containing a LuxR DNA binding domain (NP_811094.1) from Bacteroides thetaiotaomicron VPI-5482 at 2.04 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.19 / 0.22 |
| Unit cell edges [Å] | 233.65 x 233.65 x 125.27 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

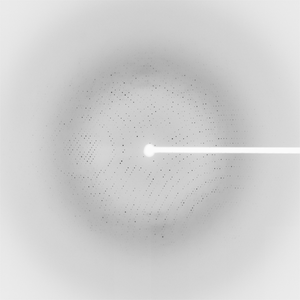

Dataset 73086_1_E1_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 310.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 69.0 |
| Wavelength [Å] | 0.97964 |
| Experiment Date | 2008-01-12 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

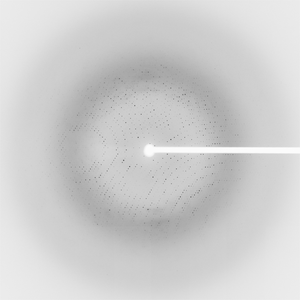

Dataset 73086_1_E2_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 310.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 69.0 |
| Wavelength [Å] | 0.91162 |
| Experiment Date | 2008-01-12 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
