Diffraction project datasets FP6320A_3cny
- Method: SAD
- Resolution: 1.85 Å
- Space group: P 21 21 21
PDB website for 3CNY
PDB validation report for 3CNY
doi:10.18430/M33CNY
Project details

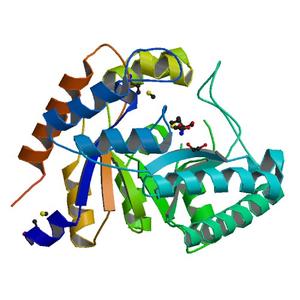

| Title | Crystal structure of a putative inositol catabolism protein iole (iole, lp_3607) from lactobacillus plantarum wcfs1 at 1.85 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 51.24 x 51.55 x 246.91 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

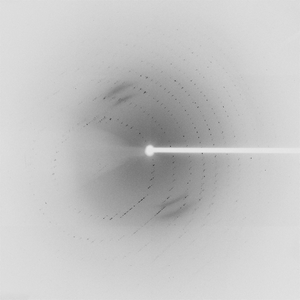

Dataset 74295_1_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 10.0 |
| Wavelength [Å] | 0.97908 |
| Experiment Date | 2008-02-21 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

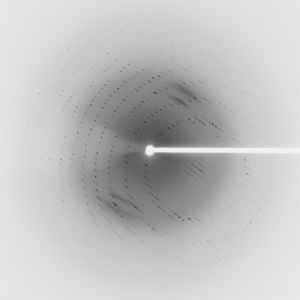

Dataset 74295_2_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 190.0 |
| Wavelength [Å] | 0.97908 |
| Experiment Date | 2008-02-21 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
