Diffraction project datasets FR11171A_3kop
- Method: MAD
- Resolution: 1.9 Å
- Space group: P 1 21 1
PDB website for 3KOP
PDB validation report for 3KOP
doi:10.18430/M33KOP
Project details

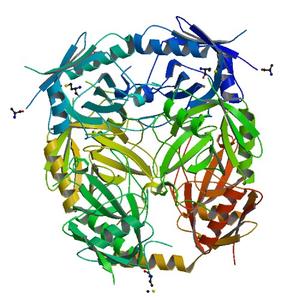

| Title | Crystal structure of Protein with a cyclophilin-like fold (YP_831253.1) from Arthrobacter sp. FB24 at 1.90 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.16 / 0.20 |
| Unit cell edges [Å] | 69.29 x 98.10 x 84.50 |
| Unit cell angles [°] | 90.0, 93.2, 90.0 |

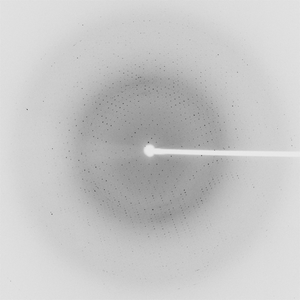

Dataset 127503_1_E1_###.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 30.0 |
| Wavelength [Å] | 0.97963 |
| Experiment Date | 2009-07-08 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

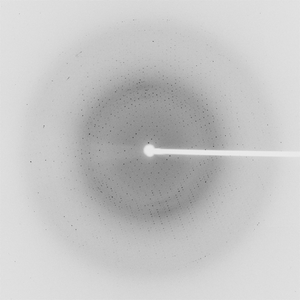

Dataset 127503_1_E2_###.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 30.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2009-07-08 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
