Diffraction project datasets FR14695A_3mst

  • Method: MAD
  • Resolution: 1.35 Å
  • Space group: P 1 21 1
Download all images (6.4 GB)

PDB website for 3MST
PDB validation report for 3MST

doi:10.18430/M33MST

Project details

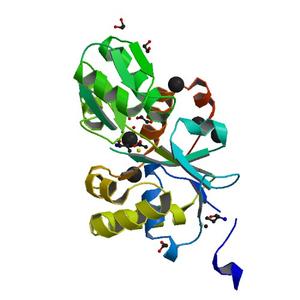

Title Crystal structure of a Putative nitrate transport protein (TVN0104) from THERMOPLASMA VOLCANIUM at 1.35 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.12 / 0.16
Unit cell edges [Å] 35.04 x 80.04 x 42.52
Unit cell angles [°] 90.0, 104.7, 90.0

Dataset 149284_1_E1_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 365.0
Oscillation width [°] 1.00
Phi [°] 40.0
Wavelength [Å] 0.97959
Experiment Date 2010-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

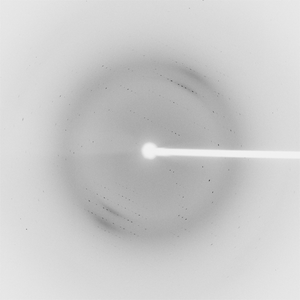

Dataset 149284_1_E2_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 365.0
Oscillation width [°] 1.00
Phi [°] 40.0
Wavelength [Å] 0.91837
Experiment Date 2010-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

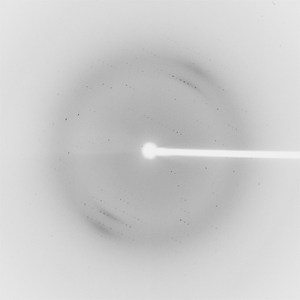

Dataset 149284_2_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 365.0
Oscillation width [°] 1.00
Phi [°] 40.0
Wavelength [Å] 0.97917
Experiment Date 2010-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
