Diffraction project datasets FR14749A_3l0a
Project details
| Title |

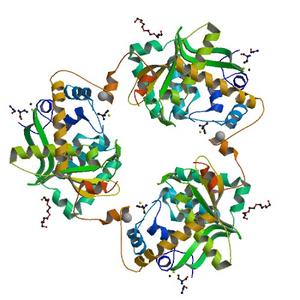

Crystal structure of Putative exonuclease (RER070207002219) from Eubacterium rectale at 2.19 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.21 / 0.25 |
| Unit cell edges [Å] |
88.25 x
88.25 x
69.35
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

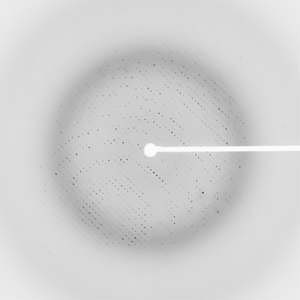

Dataset 121774_1_E1_###.mccd details
| Number of frames |
60 (1 - 60) |
| Distance [mm] |
340.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
145.0 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2009-05-14 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

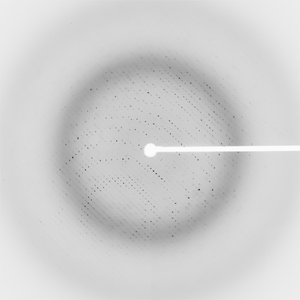

Dataset 121774_1_E2_###.mccd details
| Number of frames |
65 (1 - 65) |
| Distance [mm] |
340.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
145.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2009-05-14 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

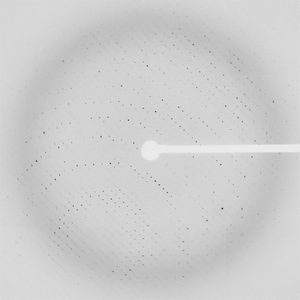

Dataset 121774_2_###.mccd details
| Number of frames |
45 (1 - 45) |
| Distance [mm] |
500.0 |
| Oscillation width [°] |
1.50 |
| Phi [°] |
145.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2009-05-14 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

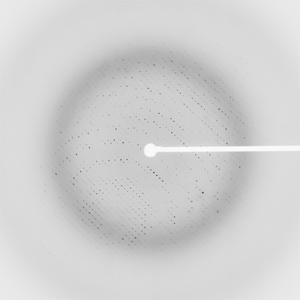

Dataset 121774_3_###.mccd details
| Number of frames |
65 (1 - 65) |
| Distance [mm] |
340.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
145.0 |
| Wavelength [Å] |
0.97922 |
| Experiment Date |
2009-05-14 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

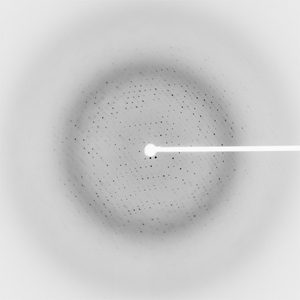

Dataset 121774_4_###.mccd details
| Number of frames |
65 (1 - 65) |
| Distance [mm] |
320.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
205.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2009-05-14 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
