Diffraction project datasets FR15073B_3fm2

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 21 21 21
Download all images (2.8 GB)

PDB website for 3FM2
PDB validation report for 3FM2

doi:10.18430/M33FM2

Project details

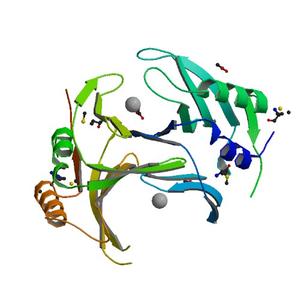

Title CRYSTAL STRUCTURE OF A PUTATIVE HEME-BINDING PROTEIN (AVA_4353) FROM ANABAENA VARIABILIS ATCC 29413 AT 1.80 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.22
Unit cell edges [Å] 51.23 x 61.75 x 84.51
Unit cell angles [°] 90.0, 90.0, 90.0

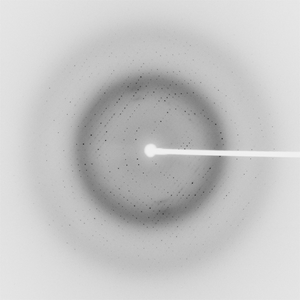

Dataset 102552_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 335.0
Wavelength [Å] 0.97870
Experiment Date 2008-11-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

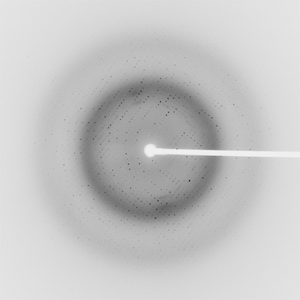

Dataset 102552_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 335.0
Wavelength [Å] 0.91162
Experiment Date 2008-11-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 102552_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 335.0
Wavelength [Å] 0.97828
Experiment Date 2008-11-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
