Diffraction project datasets GD10527A_3d5p

  • Method: MAD
  • Resolution: 1.45 Å
  • Space group: P 21 21 21
Download all images (3.9 GB)

PDB website for 3D5P
PDB validation report for 3D5P

doi:10.18430/M33D5P

Project details

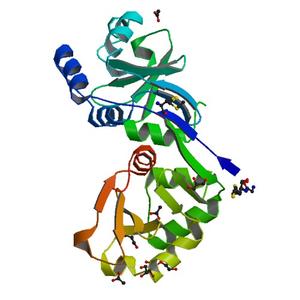

Title CRYSTAL STRUCTURE OF A PUTATIVE GLUCAN SYNTHESIS REGULATOR OF SMI1/KNR4 FAMILY (BF1740) FROM BACTEROIDES FRAGILIS NCTC 9343 AT 1.45 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.18
Unit cell edges [Å] 57.06 x 69.51 x 75.09
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 83194_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 225.0
Oscillation width [°] 1.00
Phi [°] 3.0
Wavelength [Å] 0.97916
Experiment Date 2008-04-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

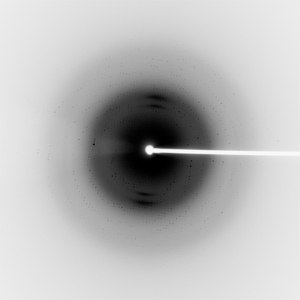

Dataset 83194_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 225.0
Oscillation width [°] 1.00
Phi [°] 3.0
Wavelength [Å] 0.91837
Experiment Date 2008-04-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

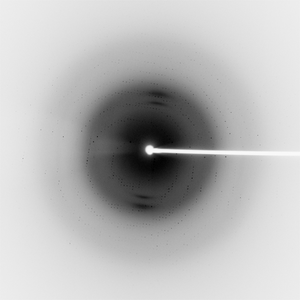

Dataset 83194_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 225.0
Oscillation width [°] 1.00
Phi [°] 3.0
Wavelength [Å] 0.97852
Experiment Date 2008-04-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
