Diffraction project datasets GS13209C_4f54

  • Method: SAD
  • Resolution: 1.6 Å
  • Space group: C 2 2 21
Download all images (5.8 GB)

PDB website for 4F54

doi:10.18430/M34F54

Project details

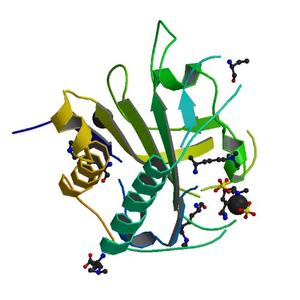

Title Crystal structure of a DUF4136 family protein (BT2437) from Bacteroides thetaiotaomicron VPI-5482 at 1.60 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 78.40 x 111.91 x 53.59
Unit cell angles [°] 90.0, 90.0, 90.0

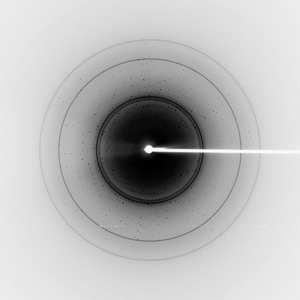

Dataset 180723_1_#####.mccd details

Number of frames 400 (1 - 400)
Distance [mm] 210.0
Oscillation width [°] 0.30
Phi [°] 70.0
Wavelength [Å] 0.97920
Experiment Date 2012-04-11
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
