Diffraction project datasets GS13486B_3ib5

  • Method: MAD
  • Resolution: 1.35 Å
  • Space group: P 41 21 2
Download all images (11.9 GB)

PDB website for 3IB5
PDB validation report for 3IB5

doi:10.18430/M33IB5

Project details

Title Crystal structure of Sex pheromone precursor (YP_536235.1) from LACTOBACILLUS SALIVARIUS SUBSP. SALIVARIUS UCC118 at 1.35 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 82.18 x 82.18 x 108.29
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 117367_1_E1_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 175.0
Oscillation width [°] 0.25
Phi [°] 146.0
Wavelength [Å] 0.97858
Experiment Date 2009-04-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

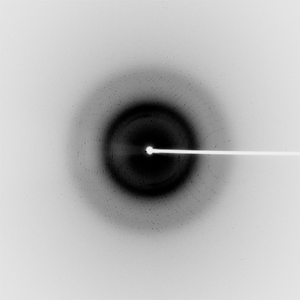

Dataset 117367_1_E2_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 175.0
Oscillation width [°] 0.25
Phi [°] 146.0
Wavelength [Å] 0.91837
Experiment Date 2009-04-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

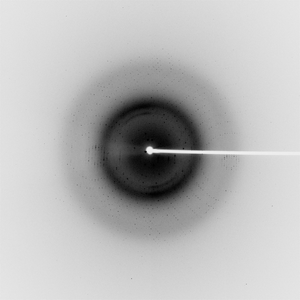

Dataset 117367_2_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 175.0
Oscillation width [°] 0.25
Phi [°] 146.0
Wavelength [Å] 0.97797
Experiment Date 2009-04-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
