Diffraction project datasets GS13556A_3kny
- Method: MAD
- Resolution: 2.6 Å
- Space group: P 64 2 2
PDB website for 3KNY
PDB validation report for 3KNY
doi:10.18430/M33KNY
Project details

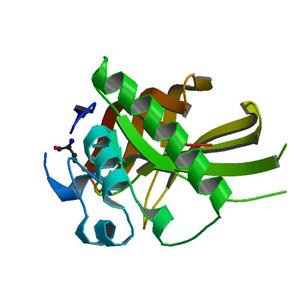

| Title | Crystal structure of a two domain protein with unknown function (bt_3535) from bacteroides thetaiotaomicron vpi-5482 at 2.60 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 120.03 x 120.03 x 94.77 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

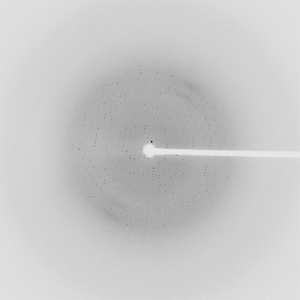

Dataset 127933_1_E1_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 24.0 |
| Wavelength [Å] | 0.97941 |
| Experiment Date | 2009-07-08 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

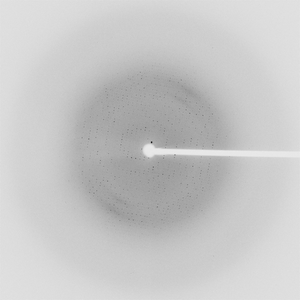

Dataset 127933_1_E2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 24.0 |
| Wavelength [Å] | 0.91162 |
| Experiment Date | 2009-07-08 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
