Diffraction project datasets GS13764A_3see

  • Method: MAD
  • Resolution: 1.25 Å
  • Space group: P 43 2 2
Download all images (8.5 GB)

PDB website for 3SEE
PDB validation report for 3SEE

doi:10.18430/M33SEE

Project details

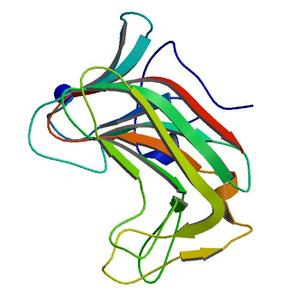

Title Crystal structure of a putative sugar binding protein (BT_4411) from Bacteroides thetaiotaomicron VPI-5482 at 1.25 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.13 / 0.15
Unit cell edges [Å] 50.47 x 50.47 x 228.46
Unit cell angles [°] 90.0, 90.0, 90.0

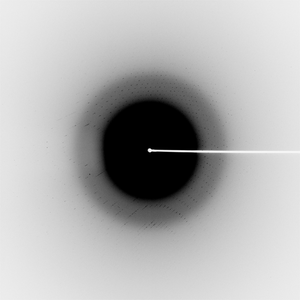

Dataset 166946_1_E1_####.mccd details

Number of frames 220 (1 - 220)
Distance [mm] 150.0
Oscillation width [°] 0.50
Phi [°] 200.0
Wavelength [Å] 0.97944
Experiment Date 2011-05-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

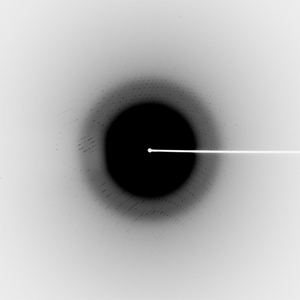

Dataset 166946_1_E2_####.mccd details

Number of frames 220 (1 - 220)
Distance [mm] 150.0
Oscillation width [°] 0.50
Phi [°] 200.0
Wavelength [Å] 0.91837
Experiment Date 2011-05-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

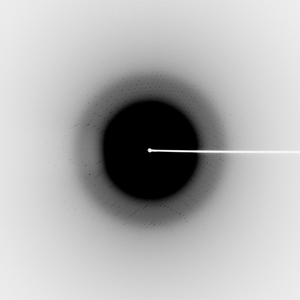

Dataset 166946_2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 150.0
Oscillation width [°] 0.50
Phi [°] 200.0
Wavelength [Å] 0.97901
Experiment Date 2011-05-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
