Diffraction project datasets GS13864B_3ks7

  • Method: MAD
  • Resolution: 2.3 Å
  • Space group: P 21 21 21
Download all images (5.8 GB)

PDB website for 3KS7
PDB validation report for 3KS7

doi:10.18430/M33KS7

Project details

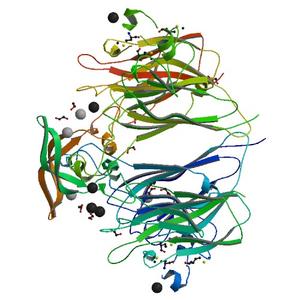

Title Crystal structure of Putative Peptide:N-glycosidase F (PNGase F) (YP_210507.1) from Bacteroides fragilis NCTC 9343 at 2.30 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 106.06 x 119.22 x 154.31
Unit cell angles [°] 90.0, 90.0, 90.0

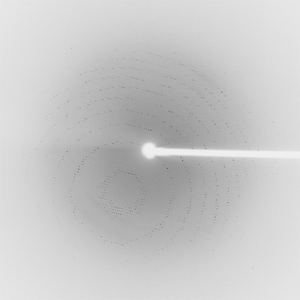

Dataset 125998_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 360.0
Oscillation width [°] 0.50
Phi [°] 346.0
Wavelength [Å] 0.97922
Experiment Date 2009-07-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

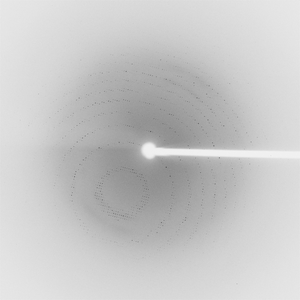

Dataset 125998_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 360.0
Oscillation width [°] 0.50
Phi [°] 346.0
Wavelength [Å] 0.91837
Experiment Date 2009-07-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

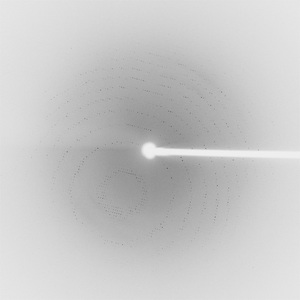

Dataset 125998_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 360.0
Oscillation width [°] 0.50
Phi [°] 346.0
Wavelength [Å] 0.97876
Experiment Date 2009-07-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
