Diffraction project datasets GS5754A_3rjv

  • Method: MAD
  • Resolution: 1.65 Å
  • Space group: P 31 2 1
Download all images (9.4 GB)

PDB website for 3RJV
PDB validation report for 3RJV

doi:10.18430/M33RJV

Project details

Title Crystal structure of a putative sel1 repeat protein (kpn_04481) from Klebsiella pneumoniae subsp. pneumoniae at 1.65 a resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.19
Unit cell edges [Å] 81.51 x 81.51 x 83.34
Unit cell angles [°] 90.0, 90.0, 120.0

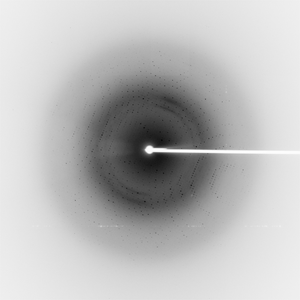

Dataset 165956_1_E1_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 210.0
Oscillation width [°] 0.50
Phi [°] 108.0
Wavelength [Å] 0.97932
Experiment Date 2011-03-23
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

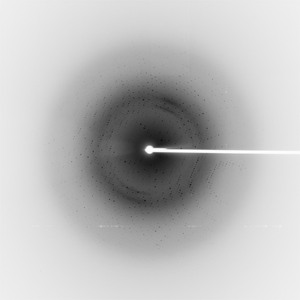

Dataset 165956_1_E2_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 210.0
Oscillation width [°] 0.50
Phi [°] 108.0
Wavelength [Å] 0.96109
Experiment Date 2011-03-23
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

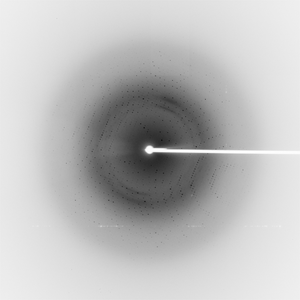

Dataset 165956_2_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 210.0
Oscillation width [°] 0.50
Phi [°] 108.0
Wavelength [Å] 0.97915
Experiment Date 2011-03-23
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
