Diffraction project datasets GS7807G_3mx3
Project details
| Title |

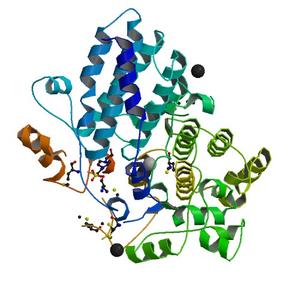

Crystal structure of a SusD homolog (BF0972) from Bacteroides fragilis NCTC 9343 at 2.00 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.16 / 0.22 |
| Unit cell edges [Å] |
153.35 x
87.88 x
78.25
|
| Unit cell angles [°] |
90.0,
116.7,
90.0
|

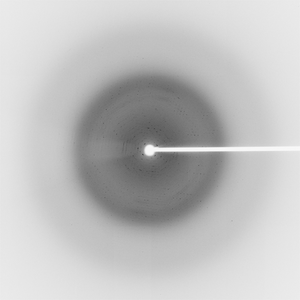

Dataset 146832_1_E1_####.mccd details
| Number of frames |
140 (1 - 140) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
110.0 |
| Wavelength [Å] |
0.97925 |
| Experiment Date |
2010-01-24 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

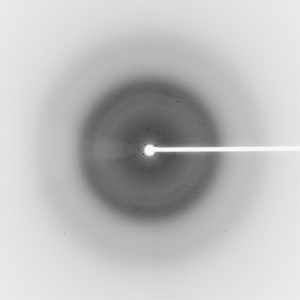

Dataset 146832_1_E2_####.mccd details
| Number of frames |
140 (1 - 140) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
110.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-01-24 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

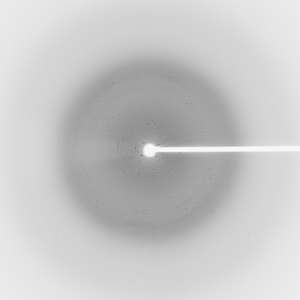

Dataset 146832_2_####.mccd details
| Number of frames |
140 (1 - 140) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
110.0 |
| Wavelength [Å] |
0.97913 |
| Experiment Date |
2010-01-24 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
