Diffraction project datasets IDP00038_3sr3
- Method: Molecular Replacement
- Resolution: 1.5 Å
- Space group: P 21 21 21
PDB website for 3SR3
doi:10.18430/M33SR3
Project details

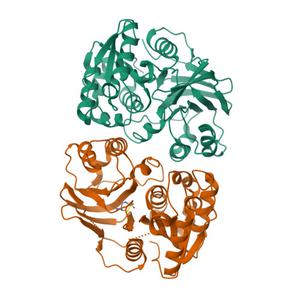

| Title | Crystal structure of the w180a mutant of microcin immunity protein mccf from Bacillus anthracis shows the active site loop in the open conformation. |
| Authors | Nocek, B., Tikhonov, A., Babnigg, G., Gu, M., Zhou, M., Makarova, K.S., Vondenhoff, G., Van Aerschot, A., Kwon, K., Anderson, W.F., Severinov, K., Joachimiak, A. |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 51.31 x 97.14 x 125.58 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset W180A-x2.####.img details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 229.1 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -80.0 |
| Kappa / Chi [°] | 0.0002 |
| Phi [°] | -0.0037 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2011-03-21 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
