Diffraction project datasets IDP00328_3uho
- Method: Molecular Replacement
- Resolution: 2.2 Å
- Space group: C 1 2 1
PDB website for 3UHO
PDB validation report for 3UHO
doi:10.18430/m33uho
Project details

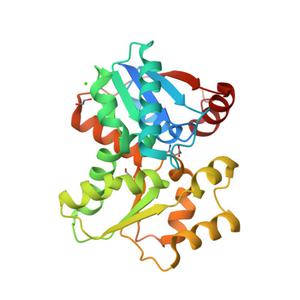

| Title | Crystal Structure of Glutamate Racemase from Campylobacter jejuni subsp. jejuni |
| Authors | Maltseva, N., Mulligan, R., Kwon, K., Kim, Y., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 139.31 x 74.38 x 50.14 |
| Unit cell angles [°] | 90.0, 96.5, 90.0 |
Dataset l-asp-m1c7eg-2.####.img details
| Number of frames | 121 (1 - 121) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 20.0 |
| Phi [°] | -0.0141 |
| Wavelength [Å] | 0.97910 |
| Experiment Date | 2011-10-24 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
Dataset l-asp-m1c7eg.####.img details
| Number of frames | 131 (1 - 131) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -100.0 |
| Phi [°] | -0.0141 |
| Wavelength [Å] | 0.97910 |
| Experiment Date | 2011-10-24 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
