Diffraction project datasets IDP00479_3h07
- Method: Molecular Replacement
- Resolution: 1.95 Å
- Space group: P 1 21 1
PDB website for 3H07
PDB validation report for 3H07
doi:10.18430/m33h07
Project details

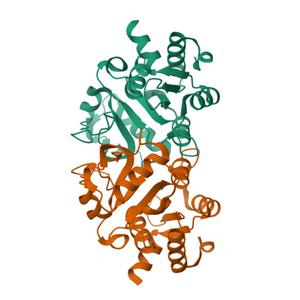

| Title | Crystal structure of 3,4-dihydroxy-2-butanone 4-phosphate synthase from Yersinia pestis CO92 |
| Authors | Nocek, B., Gu, M., Kwon, K., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.20 / 0.25 |
| Unit cell edges [Å] | 39.91 x 70.82 x 62.30 |
| Unit cell angles [°] | 90.0, 90.1, 90.0 |
Dataset h12-x1.####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 256.5 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.007 |
| Wavelength [Å] | 0.97926 |
| Experiment Date | 2008-12-10 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
