Diffraction project datasets IDP01038_3ghz
- Method: Molecular Replacement
- Resolution: 2.03 Å
- Space group: I 2 3
PDB website for 3GHZ
PDB validation report for 3GHZ
doi:10.18430/m33ghz
Project details

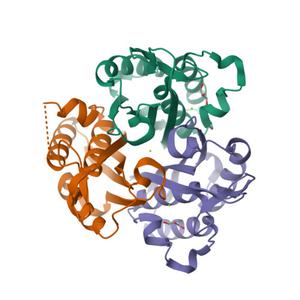

| Title | 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase from Salmonella typhimurium |
| Authors | Osipiuk, J., Gu, M., Peterson, S., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 143.97 x 143.97 x 143.97 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset IDP01038_3ghz.####.img details
| Number of frames | 102 (1 - 102) |
| Distance [mm] | 344.5 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -95.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.007 |
| Wavelength [Å] | 0.97926 |
| Experiment Date | 2008-12-05 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
Dataset IDP01038_3ghz.####.img details
| Number of frames | 101 (401 - 501) |
| Distance [mm] | 292.2 |
| Oscillation width [°] | 0.40 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.007 |
| Wavelength [Å] | 0.97926 |
| Experiment Date | 2008-12-05 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
