Diffraction project datasets IDP01056_3r3r

  • Method: SAD
  • Resolution: 1.2 Å
  • Space group: H 3
Download all images (1.3 GB)

PDB website for 3R3R

doi:10.18430/M33R3R

Project details

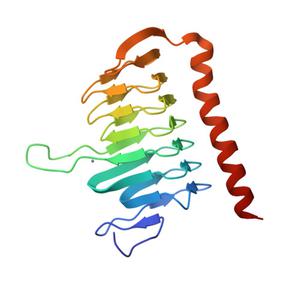

Title Structure of the YrdA ferripyochelin binding protein from Salmonella enterica
Authors Anderson, S.M., Wawrzak, Z., Onopriyenko, O., Peterson, S.N., Anderson, W.F., Savchenko, A., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.14 / 0.16
Unit cell edges [Å] 99.43 x 99.43 x 46.66
Unit cell angles [°] 90.0, 90.0, 120.0

Dataset IDP01056-3.### details

Number of frames 320 (1 - 320)
Distance [mm] 95.0
Oscillation width [°] 0.50
Wavelength [Å] 0.97872
Experiment Date 2010-12-16
Equipment 21-ID-F at APS (Advanced Photon Source)
