Diffraction project datasets IDP02095_3TK7
- Resolution: 2.0 Å
- Space group: P 21 21 21
PDB website for 3TK7
doi:10.18430/m33tk7
Project details

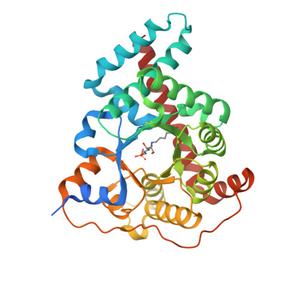

| Title | 2.0 Angstrom Resolution Crystal Structure of Transaldolase B (TalA) from Francisella tularensis in Covalent Complex with Fructose 6-Phosphate |
| Authors | Light, S.H., Minasov, G., Halavaty, A.S., Shuvalova, L., Papazisi, L., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 56.12 x 74.26 x 164.99 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

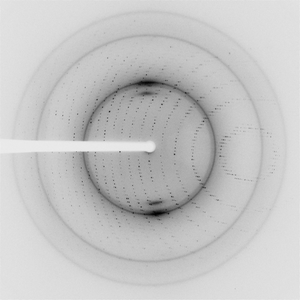

Dataset idp02095f.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 67.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2011-08-04 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
