Diffraction project datasets IDP02297_5I45
- Resolution: 1.35 Å
- Space group: P 1 21 1
Uniprot website for Q5NFJ9
PDB website for 5I45
PDB validation report for 5I45
doi:10.18430/m35i45
Project details

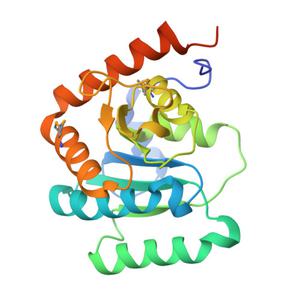

| Title | 1.35 Angstrom Crystal Structure of C-terminal Domain of Glycosyl Transferase Group 1 Family Protein (LpcC) from Francisella tularensis. |
| Authors | Minasov, G., Filippova, E., Shuvalova, L., Kiryukhina, O., Dubrovska, I., Shatsman, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.20 |
| Unit cell edges [Å] | 38.48 x 58.96 x 41.65 |
| Unit cell angles [°] | 90.0, 117.7, 90.0 |

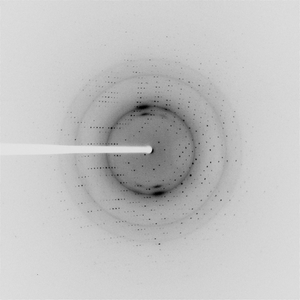

Dataset idp02297-2sm-cut-b_1_1_2.### details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 120.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 70.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-02-08 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
