Diffraction project datasets IDP02505_3qao
- Resolution: 1.874 Å
- Space group: P 32 2 1
PDB website for 3QAO
PDB validation report for 3QAO
doi:10.18430/m33qao
Project details

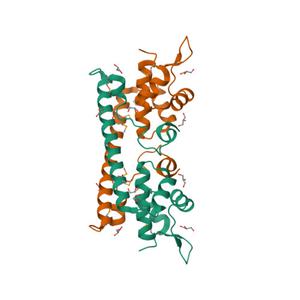

| Title | The crystal structure of the N-terminal domain of a MerR-like transcriptional regulator from Listeria monocytogenes EGD-e |
| Authors | Tan, K., Gu, M., Peterson, S., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 56.77 x 56.77 x 113.11 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset IDP102505B_PKa.####.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 238.3 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -90.0061 |
| Wavelength [Å] | 0.97915 |
| Experiment Date | 2010-12-06 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
