Diffraction project datasets IDP02609_3lqn
- Method: Molecular Replacement
- Resolution: 1.8 Å
- Space group: C 2 2 21
PDB website for 3LQN
PDB validation report for 3LQN
doi:10.18430/m33lqn
Project details

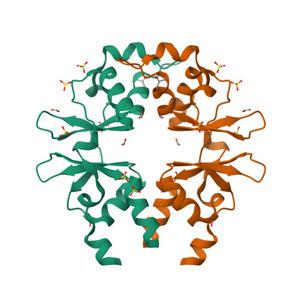

| Title | Crystal Structure of CBS Domain-containing Protein of Unknown Function from Bacillus anthracis str. Ames Ancestor |
| Authors | Kim, Y., Mulligan, R., Hasseman, J., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.24 |
| Unit cell edges [Å] | 27.59 x 120.77 x 80.03 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset a1f7e-peak.####.img details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 190.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -110.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.0009 |
| Wavelength [Å] | 0.97926 |
| Experiment Date | 2009-12-21 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
