Diffraction project datasets IDP04643_3m84
- Method: SAD
- Resolution: 1.699 Å
- Space group: P 21 21 21
PDB website for 3M84
PDB validation report for 3M84
doi:10.18430/m33m84
Project details

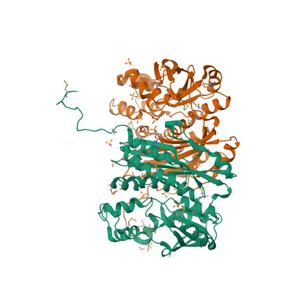

| Title | Crystal Structure of Phosphoribosylaminoimidazole Synthetase from Francisella tularensis |
| Authors | Maltseva, N., Kim, Y., Hasseman, J., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 62.71 x 90.56 x 118.99 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset a1f6as2-peak.####.img details
| Number of frames | 460 (1 - 460) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -115.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.0009 |
| Wavelength [Å] | 0.97915 |
| Experiment Date | 2010-02-21 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
