Diffraction project datasets IDP05558_4hn3
- Resolution: 2.047 Å
- Space group: P 21 21 2
PDB website for 4HN3
PDB validation report for 4HN3
doi:10.18430/m34hn3
Project details

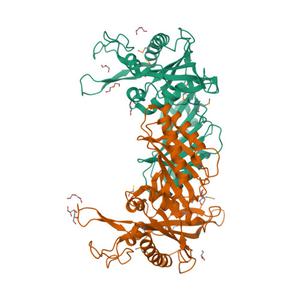

| Title | The crystal structure of a sex pheromone precursor (lmo1757) from Listeria monocytogenes EGD-e |
| Authors | Tan, K., Makowska-Grzyska, M., Kwon, K., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 149.09 x 99.32 x 104.61 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset IDP05583Cwell5_INa.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 274.7 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -60.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97949 |
| Experiment Date | 2012-07-15 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
Dataset IDP05583Cwell5_PKa.####.img details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 274.7 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -60.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2012-07-15 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
