Diffraction project datasets IDP06251_5IBX
- Resolution: 1.65 Å
- Space group: P 1
Uniprot website for Q04JH4
PDB website for 5IBX
PDB validation report for 5IBX
doi:10.18430/m35ibx
Project details

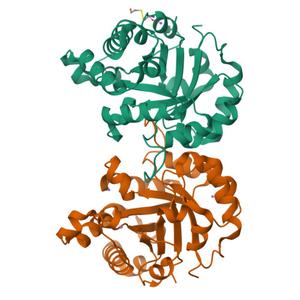

| Title | 1.65 Angstrom Crystal Structure of Triosephosphate Isomerase (TIM) from Streptococcus pneumoniae |
| Authors | Minasov, G., Shuvalova, L., Dubrovska, I., Flores, K., Shatsman, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.20 / 0.23 |
| Unit cell edges [Å] | 78.85 x 84.35 x 92.46 |
| Unit cell angles [°] | 75.4, 66.0, 62.0 |

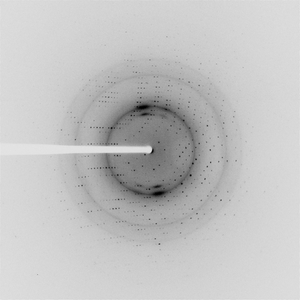

Dataset idp02297-2sm-cut-b_1_1_2.### details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 120.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 70.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-02-08 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
