Diffraction project datasets IDP07581_5TV2
- Resolution: 1.6 Å
- Space group: P 1 21 1
Uniprot website for Q8DCQ8
PDB website for 5TV2
PDB validation report for 5TV2
doi:10.18430/m35tv2
Project details

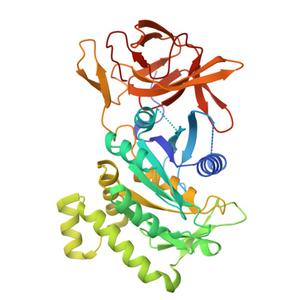

| Title | Crystal structure of a fragment (1-405) of an elongation factor G from Vibrio vulnificus CMCP6 |
| Authors | Filippova, E.V., Minasov, G., Shuvalova, L., Cardona-Correa, A., Dubrovska, I., Grimshaw, S., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.25 |
| Unit cell edges [Å] | 59.68 x 54.50 x 65.32 |
| Unit cell angles [°] | 90.0, 116.6, 90.0 |

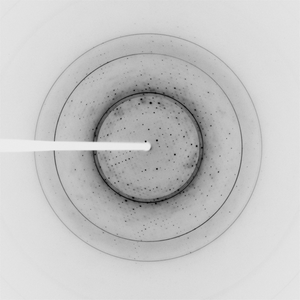

Dataset idp07581cut-a-2_1_3_5.### details
| Number of frames | 350 (1 - 350) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 170.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-10-05 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |

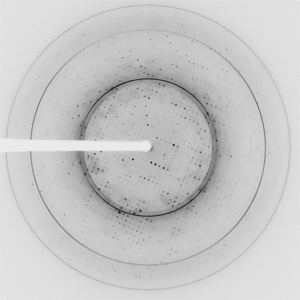

Dataset idp07581cut-a_1_3_5.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.60 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-10-05 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
