Diffraction project datasets IDP90537_5vgm
- Resolution: 1.95 Å
- Space group: P 1 21 1
Uniprot website for A0A0H6AFA4
PDB website for 5VGM
PDB validation report for 5VGM
doi:10.18430/m35vgm
Project details

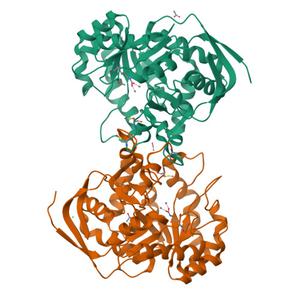

| Title | Crystal structure of dihydroorotase pyrC from Vibrio cholerae in complex with zinc at 1.95 A resolution. |
| Authors | Lipowska, J., Shabalin, I.G., Miks, C.D., Winsor, J., Cooper, D.R., Shuvalova, L., Kwon, K., Lewinski, K., Anderson, W.F., Minor, W., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 62.51 x 57.26 x 87.52 |
| Unit cell angles [°] | 90.0, 105.1, 90.0 |

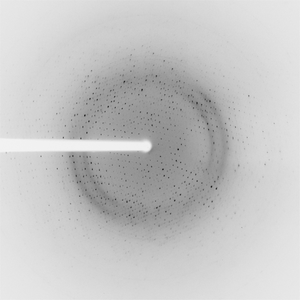

Dataset sp3_1_1_8.### details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -180.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2017-03-11 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
