Diffraction project datasets IDP90544_4qi9
- Resolution: 2.297 Å
- Space group: C 1 2 1
PDB website for 4QI9
PDB validation report for 4QI9
doi:10.18430/m34qi9
Project details

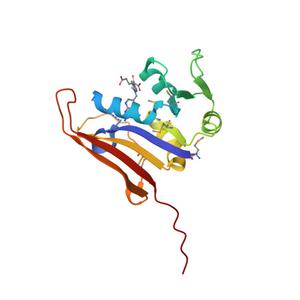

| Title | Crystal structure of dihydrofolate reductase from Yersinia pestis complexed with methotrexate |
| Authors | Maltseva, N., Kim, Y., Makowska-Grzyska, M., Mulligan, R., Shatsman, S., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 178.20 x 103.64 x 34.29 |
| Unit cell angles [°] | 90.0, 93.0, 90.0 |
Dataset ametNADPsoak-M1B6eg.####.img details
| Number of frames | 213 (1 - 213) |
| Distance [mm] | 300.1 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -120.0 |
| Kappa / Chi [°] | 0.0001 |
| Phi [°] | -0.0033 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2012-12-02 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
