Diffraction project datasets IDP90564_3m7i
- Method: Molecular Replacement
- Resolution: 1.75 Å
- Space group: C 1 2 1
PDB website for 3M7I
PDB validation report for 3M7I
doi:10.18430/m33m7i
Project details

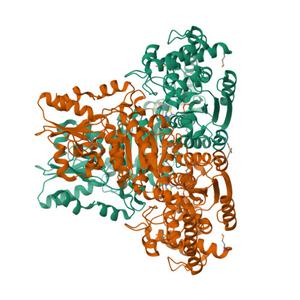

| Title | Crystal structure of transketolase in complex with thiamine diphosphate, ribose-5-phosphate(pyranose form) and magnesium ion |
| Authors | Nocek, B., Makowska-Grzyska, M., Maltseva, N., Anderson, W., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 130.34 x 70.96 x 69.19 |
| Unit cell angles [°] | 90.0, 109.4, 90.0 |
Dataset TK-1-H2-x1-low.####.img details
| Number of frames | 170 (1 - 170) |
| Distance [mm] | 247.4 |
| Oscillation width [°] | 0.40 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 0.97933 |
| Experiment Date | 2010-02-10 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
Dataset TK-1-H2-x1.####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 247.4 |
| Oscillation width [°] | 0.40 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 0.97933 |
| Experiment Date | 2010-02-10 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
