Diffraction project datasets IDP90567_3r2e
- Method: Molecular Replacement
- Resolution: 2.15 Å
- Space group: I 4 2 2
PDB website for 3R2E
PDB validation report for 3R2E
doi:10.18430/m33r2e
Project details

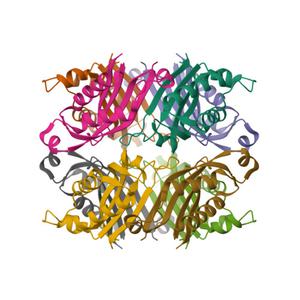

| Title | Dihydroneopterin aldolase/dihydroneopterin triphosphate 2'-epimerase from Yersinia pestis. |
| Authors | Osipiuk, J., Maltseva, N., Makowska-Grzyska, M., Papazisi, L., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.22 / 0.26 |
| Unit cell edges [Å] | 71.72 x 71.72 x 107.63 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset idp90567_3R2E.####.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 218.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -80.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.0009 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2010-02-24 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
