Diffraction project datasets IDP90781_4r7j
- Resolution: 2.1172 Å
- Space group: P 4 21 2
PDB website for 4R7J
PDB validation report for 4R7J
doi:10.18430/m34r7j
Project details

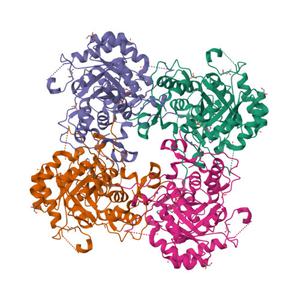

| Title | Crystal Structure of Inosine 5'-monophosphate Dehydrogenase with the Internal Deletion Containing CBS Domain from Campylobacter jejuni |
| Authors | Kim, Y., Makowska-Grzyska, M., Gu, M., Hedstrom, L., Anderson, W.F., Joachimiak, A., CSGID, Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 119.41 x 119.41 x 69.39 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset a110-m4d10gly.####.img details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 300.1 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -100.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97926 |
| Experiment Date | 2012-06-20 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
