Diffraction project datasets IDP90922_4GFS
- Resolution: 1.8 Å
- Space group: P 1 21 1
PDB website for 4GFS
doi:10.18430/m34gfs
Project details

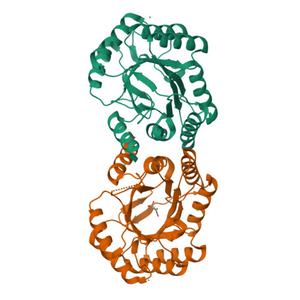

| Title | 1.8 Angstrom Crystal Structure of the 3-Dehydroquinate Dehydratase (aroD) from Salmonella typhimurium LT2 with Nickel Bound at Active Site |
| Authors | Light, S.H., Minasov, G., Krishna, S.N., Shuvalova, L., Kwon, K., Lavie, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.20 / 0.25 |
| Unit cell edges [Å] | 48.68 x 74.47 x 63.57 |
| Unit cell angles [°] | 90.0, 100.2, 90.0 |

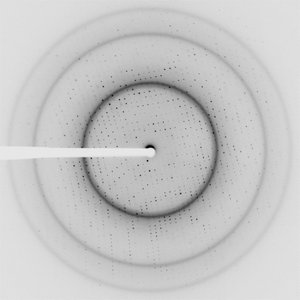

Dataset idp90922pha.### details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 1.07806 |
| Experiment Date | 2012-06-04 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
