Diffraction project datasets IDP90922_4GUF
- Resolution: 1.5 Å
- Space group: P 1
Uniprot website for P58687
PDB website for 4GUF
PDB validation report for 4GUF
doi:10.18430/m34guf
Project details

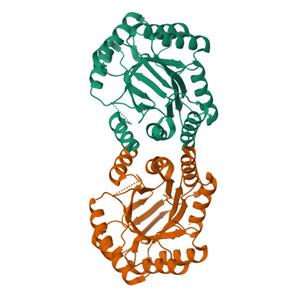

| Title | 1.5 Angstrom Crystal Structure of the Salmonella enterica 3-Dehydroquinate Dehydratase (aroD) E86A Mutant |
| Authors | Light, S.H., Minasov, G., Duban, M.-E., Shuvalova, L., Kwon, K., Lavie, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.19 |
| Unit cell edges [Å] | 36.77 x 45.55 x 81.06 |
| Unit cell angles [°] | 93.9, 101.4, 105.9 |

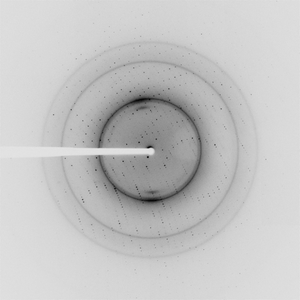

Dataset idp90922-E86A-a.### details
| Number of frames | 350 (1 - 350) |
| Distance [mm] | 170.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 355.0 |
| Wavelength [Å] | 1.07809 |
| Experiment Date | 2012-04-02 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
