Diffraction project datasets IDP91511_5W6L
- Resolution: 3.45 Å
- Space group: I 2 3
Uniprot website for A0A1V8MQR3
PDB website for 5W6L
PDB validation report for 5W6L
doi:10.18430/m35w6l
Project details

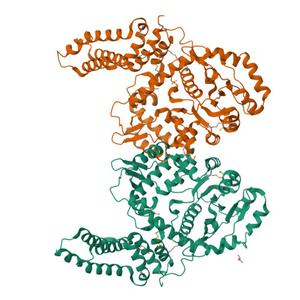

| Title | Crystal Structure of RRSP, a MARTX Toxin Effector Domain from Vibrio vulnificus CMCP6 |
| Authors | Minasov, G., Wawrzak, Z., Biancucci, M., Shuvalova, L., Dubrovska, I., Satchell, K.J., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.23 / 0.25 |
| Unit cell edges [Å] | 247.10 x 247.10 x 247.10 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

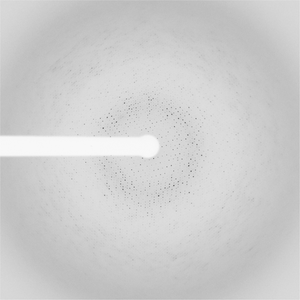

Dataset DUF5-sm-6.### details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 150.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2013-07-15 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
