Diffraction project datasets IDP92074_5bxi
- Resolution: 1.7 Å
- Space group: C 1 2 1
PDB website for 5BXI
PDB validation report for 5BXI
doi:10.18430/m35bxi
Project details

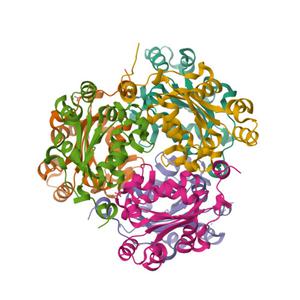

| Title | 1.7 Angstrom Resolution Crystal Structure of Putative Nucleoside Diphosphate Kinase from Toxoplasma gondii with Tyrosine of Tag Bound to Active Site |
| Authors | Minasov, G., Ruan, J., Ngo, H., Shuvalova, L., Dubrovska, I., Flores, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.15 / 0.19 |
| Unit cell edges [Å] | 236.81 x 73.40 x 122.67 |
| Unit cell angles [°] | 90.0, 116.8, 90.0 |
Dataset idp92074a_1_1_1.### details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 210.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 35.0 |
| Wavelength [Å] | 0.97890 |
| Experiment Date | 2015-03-23 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
