Diffraction project datasets IDP92102_4zlv
- Resolution: 1.8 Å
- Space group: P 1
PDB website for 4ZLV
PDB validation report for 4ZLV
doi:10.18430/m34zlv
Project details

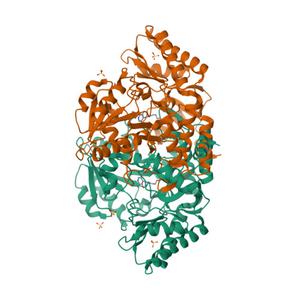

| Title | Crystal structure of the ornithine aminotransferase from Toxoplasma gondii ME49 in a complex with the Schiff base between PLP and Lys286 |
| Authors | Filippova, E.V., Minasov, G., Flores, K., Van Le, H., Silverman, R.B., McLeod, R., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.21 |
| Unit cell edges [Å] | 56.48 x 61.46 x 63.44 |
| Unit cell angles [°] | 100.5, 92.4, 108.3 |
Dataset TgOAT-c11-2_1_3_10.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 280.0 |
| Wavelength [Å] | 0.97889 |
| Experiment Date | 2015-03-23 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
Dataset TgOAT-c11-a_1_3_10.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 100.0 |
| Wavelength [Å] | 0.97889 |
| Experiment Date | 2015-03-23 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
