Diffraction project datasets IDP95180_5TKW
- Resolution: 1.35 Å
- Space group: P 21 21 2
Uniprot website for A0A0C7KMJ7
PDB website for 5TKW
PDB validation report for 5TKW
doi:10.18430/m35tkw
Project details

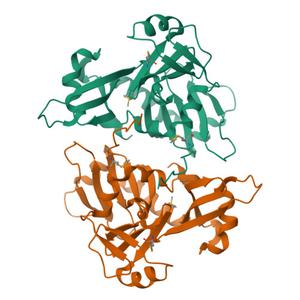

| Title | 1.35 Angstrom Resolution Crystal Structure of a Pullulanase-specific Type II Secretion System Integral Cytoplasmic Membrane Protein GspL (N-terminal fragment; residues 1-237) from Klebsiella pneumoniae. |
| Authors | Minasov, G., Shuvalova, L., Kiryukhina, O., Dubrovska, I., Grimshaw, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 63.90 x 81.58 x 40.23 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

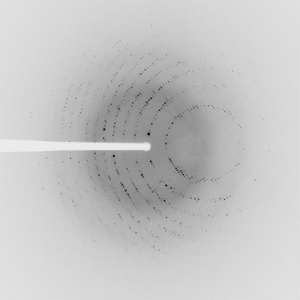

Dataset idp95180-4-cut-a_2_1_1.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 70.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-08-22 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
