Diffraction project datasets IDP95184_5F7Q
- Resolution: 2.4 Å
- Space group: P 1 21 1
Uniprot website for Q8YAF1
PDB website for 5F7Q
PDB validation report for 5F7Q
doi:10.18430/m35f7q
Project details

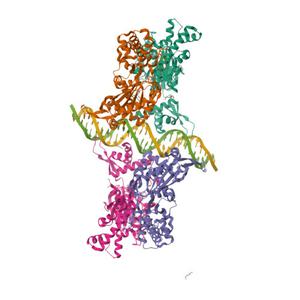

| Title | ROK repressor Lmo0178 from Listeria monocytogenes bound to operator |
| Authors | Light, S.H., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 73.67 x 180.26 x 79.86 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

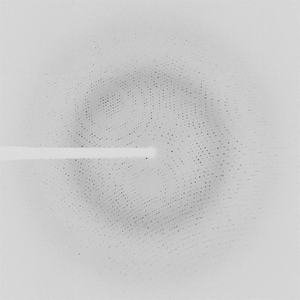

Dataset idp00699e.### details
| Number of frames | 133 (268 - 400) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 258.5 |
| Wavelength [Å] | 0.91840 |
| Experiment Date | 2008-10-10 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |

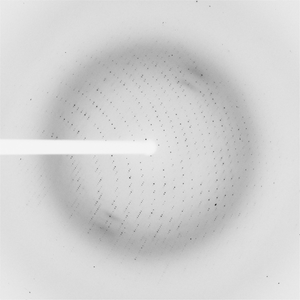

Dataset idp95184q_1_1_5.### details
| Number of frames | 433 (1 - 433) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 140.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2015-04-20 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
