Diffraction project datasets IDP97225_7mqn
- Resolution: 2.21 Å
- Space group: C 1 2 1
PDB website for 7MQN
PDB validation report for 7MQN
doi:10.18430/m37mqn
Project details

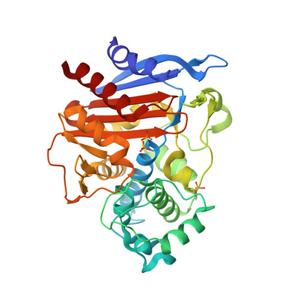

| Title | Crystal structure of class C beta lactamase from Rhodobacter sphaeroides |
| Authors | Chang, C., Tesar, C., Endres, M., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 165.98 x 72.09 x 115.28 |
| Unit cell angles [°] | 90.0, 132.8, 90.0 |

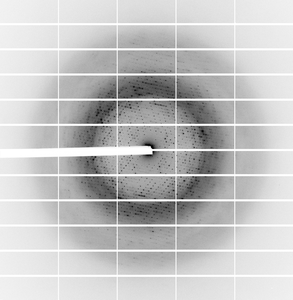

Dataset xCs1_#####.cbf details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 299.9 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 0.97913 |
| Experiment Date | 2020-07-22 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

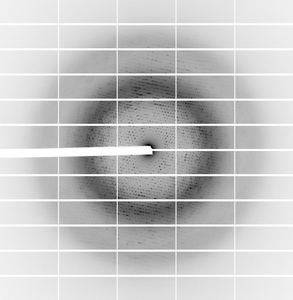

Dataset xCs2_#####.cbf details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 299.9 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 0.97913 |
| Experiment Date | 2020-07-22 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

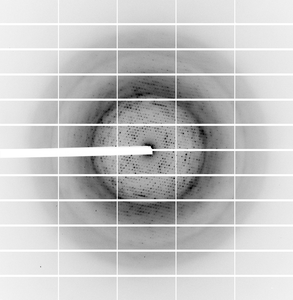

Dataset xCs3_#####.cbf details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 299.9 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 0.97913 |
| Experiment Date | 2020-07-22 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
