Diffraction project datasets LepnA.01128.a.B1_6n1m
- Resolution: 1.55 Å
- Space group: I 2 2 2
PDB website for 6N1M
PDB validation report for 6N1M
doi:10.18430/m36n1m
Project details

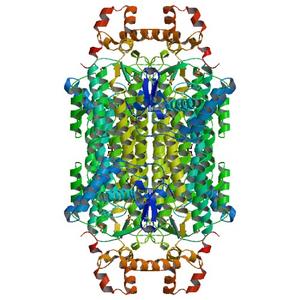

| Title | Crystal structure of Fumarate hydratase class II from Legionella pneumophila Philadelphia 1 |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.14 / 0.17 |
| Unit cell edges [Å] | 58.23 x 122.08 x 128.69 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

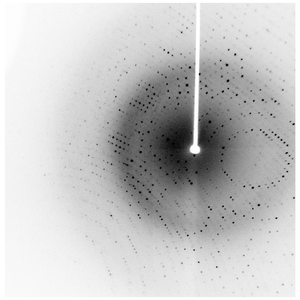

Dataset 299629d1_x_####.img details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | -105.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

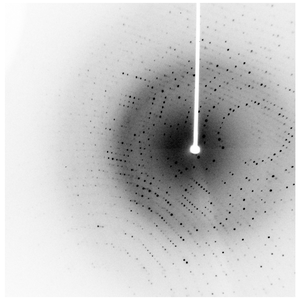

Dataset 299629d1_y_####.img details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | -105.0 |
| Kappa / Chi [°] | 15.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
