Diffraction project datasets LepnA_00023_a_B1_6n1k

  • Resolution: 3.06 Å
  • Space group: P 1 21 1
Download all images (913.6 MB)

PDB website for 6N1K

doi:10.18430/m36n1k

Project details

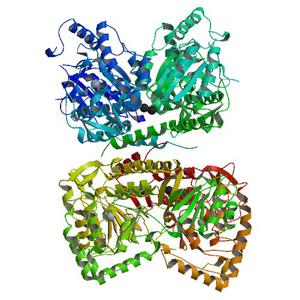

Title Full-length human phenylalanine hydroxylase (PAH) in the resting state
Authors Arturo, E.C., Jaffe, E.K.
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 72.44 x 202.64 x 72.57
Unit cell angles [°] 90.0, 90.3, 90.0

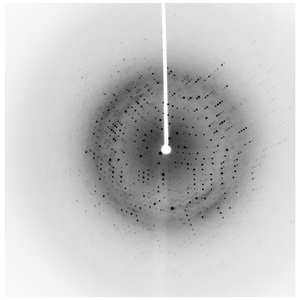

Dataset 299905h12_x_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -95.0
Wavelength [Å] 1.54178
Equipment 17-ID-1

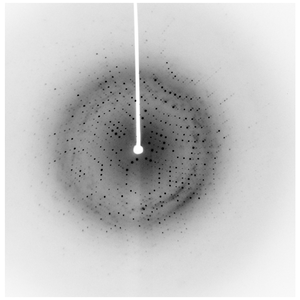

Dataset 299905h12_y_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -85.0
Wavelength [Å] 1.54178
Equipment 17-ID-1
