Diffraction project datasets MA16109D_4djn
- Method: SAD
- Resolution: 2.2 Å
- Space group: P 21 21 21
PDB website for 4DJN
PDB validation report for 4DJN
doi:10.18430/M34DJN
Project details

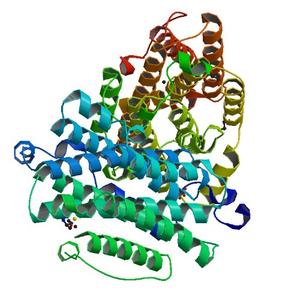

| Title | Crystal structure of a ribonucleotide reductase M2 B (RNRR2) from Homo sapiens at 2.20 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG), Partnership for T-Cell Biology (TCELL) |
| Bioentity | None |
| R / Rfree | 0.19 / 0.22 |
| Unit cell edges [Å] | 69.05 x 98.76 x 133.67 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

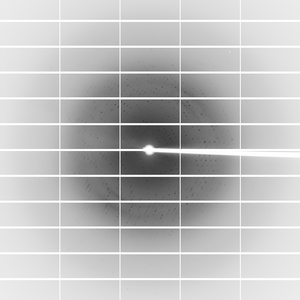

Dataset 173569_1_#####.cbf details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 247.0 |
| Wavelength [Å] | 0.97895 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

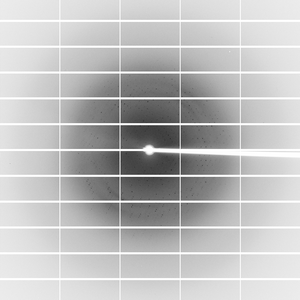

Dataset 173569_2_#####.cbf details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 247.0 |
| Wavelength [Å] | 0.97895 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
