Diffraction project datasets MBD2_7ray
- Resolution: 1.78 Å
- Space group: C 2 2 21
Uniprot website for Q9UBB5
PDB website for 7RAY
PDB validation report for 7RAY
doi:10.18430/M37RAY
Project details
| Title | Crystal structure of MBD2 with DNA |
| Authors | Liu, K., Dong, A., Loppnau, P., Edwards, A.M., Arrowsmith, C.H., Min, J., Structural Genomics Consortium (SGC) |
| R / Rfree | 0.21 / 0.25 |
| Unit cell edges [Å] | 37.60 x 71.99 x 126.11 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

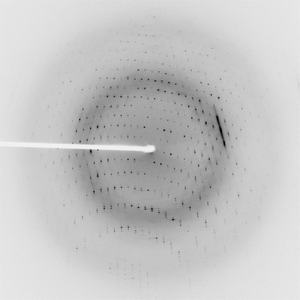

Dataset x242934_1.#### details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 240.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 0.97945 |
| Experiment Date | 2013-07-25 |
| Equipment | 23-ID-D at APS (Advanced Photon Source) |
