Diffraction project datasets MBD3_x239314_6ccg
- Resolution: 1.9 Å
- Space group: C 1 2 1
PDB website for 6CCG
PDB validation report for 6CCG
doi:10.18430/M36CCG
Project details

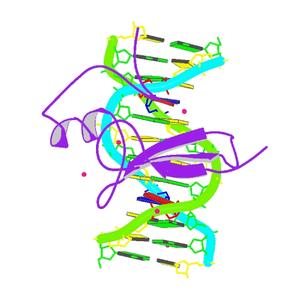

| Title | Crystal structure MBD3 MBD domain in complex with methylated CpG DNA |
| Authors | Liu, K., Tempel, W., Bountra, C., Arrowsmith, C.H., Edwards, A.M., Min, J., Structural Genomics Consortium (SGC) |
| R / Rfree | 0.22 / 0.25 |
| Unit cell edges [Å] | 72.27 x 36.46 x 130.84 |
| Unit cell angles [°] | 90.0, 92.4, 90.0 |

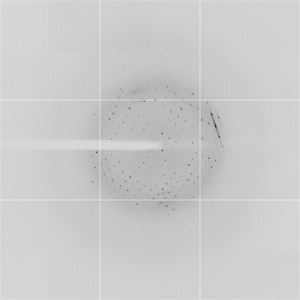

Dataset lo1.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 0.0001 |
| Phi [°] | -0.0033 |
| Wavelength [Å] | 0.97911 |
| Experiment Date | 2012-12-14 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

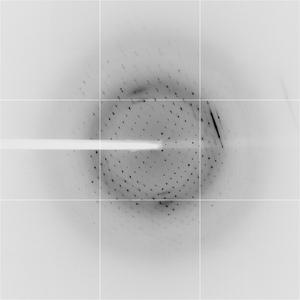

Dataset r1.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 0.0001 |
| Phi [°] | -0.0033 |
| Wavelength [Å] | 0.97911 |
| Experiment Date | 2012-12-14 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
